| - O P E R A T I O N - |
|
_____________________________________________________________

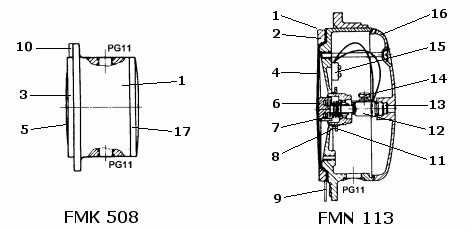

Component parts
| 1 |
Body |
10 |
Gasket FMK |
| 2 |
Diaphragm guard ring FMK |
11 |
Locking ring |
| 3 |
Diaphragm guard ring FMN |
12 |
Micro switch |
| 4 |
Flat diaphragm FMN |
13 |
Balancing filter |
| 5 |
Flat diaphragm FMK |
14 |
Knurled nut |
| 6 |
Tapped / Ram |
15 |
Connecting terminal |
| 7 |
Reset spring 20-60-250p |
16 |
Housing cover FMN |
| 8 |
Adjustable lining |
17 |
Housing cover FMK |
| 9 |
Gasket FMN |
|
|
|
|
|
